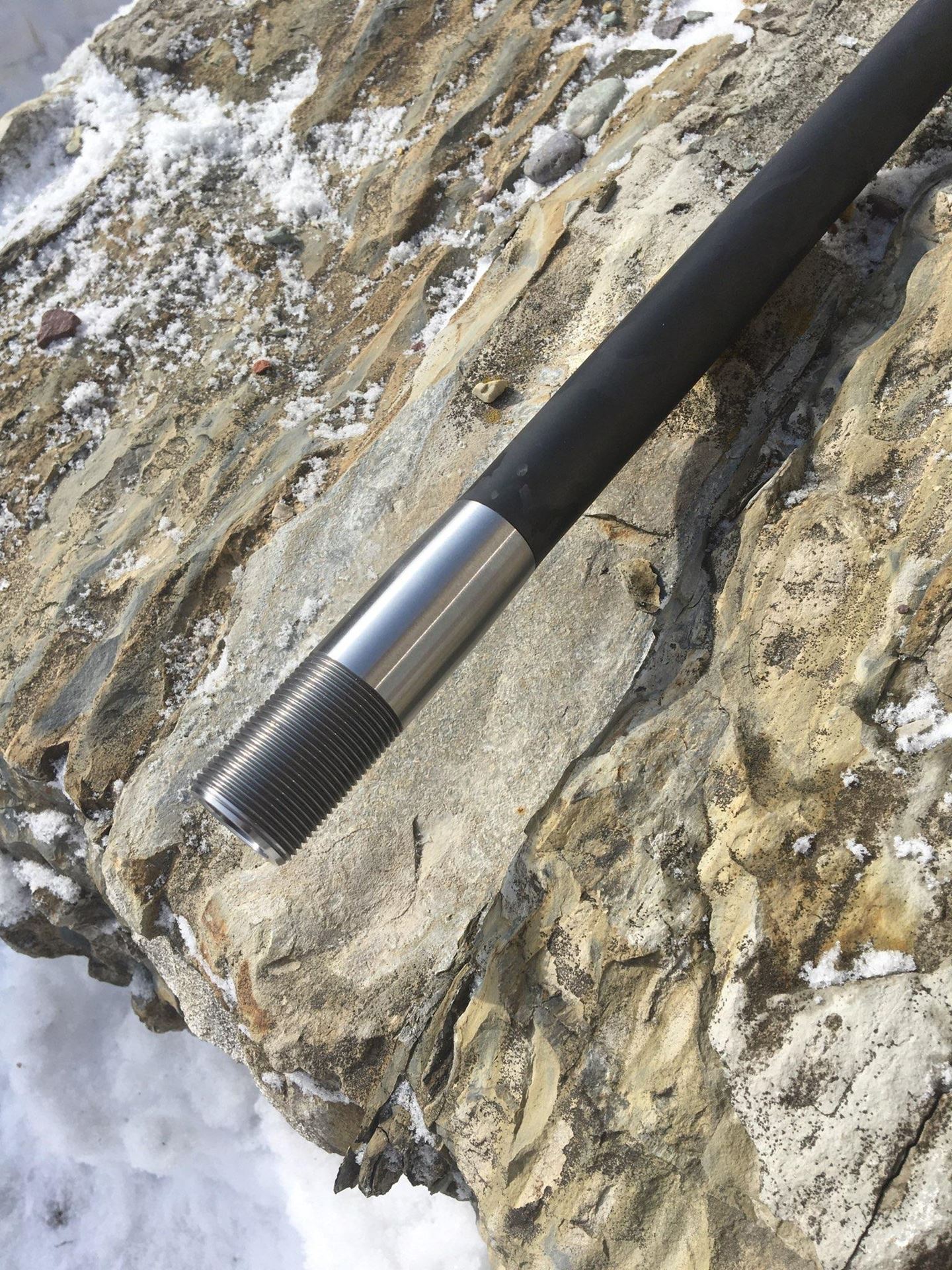

Rem/Ages Carbon Fiber Prefit Barrel

Our popular Rem/Age Prefit Barrels, now available in carbon fiber! Muzzle Brake Not Included.
*
*
*
*
*
*

For Factory Remington "C-clip" style extractors (.700") or for upgraded bolts with M16-style extractors (.715").

*
*

Polish or Matte

(Matte is media blasted only!)

Add Cerakote to Carbon Fiber Barrel?

Cryogenics

-priority tasking (typically shaves off 20%-50% of lead time--cannot be added after order is placed).

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$752.00

"Rem/Ages" Carbon Fiber Remington 700 Prefit Barrels

One of Two Contours (.990" Outside Diameter or 1.070" outside diameter). -- ~2lbs 2oz @ 22"

Available in all of our calibers up to and including .375 for the .990" (Small/Medium Caliber) Contour.

Muzzle Threads Available in 1/2"x28, 5/8"x24 and 11/16"x24 for the .990" Contour.  Muzzle Brake Not Included.

All Calibers and Muzzle Threads available in the 1.070" (Large Caliber) Contour.



CARBON FIBER BOLT-ACTION PREFIT CONTOURS

#1. Ultralight/Lightweight - A) 1.062", B) 2.75", C) .990", D) 3.75", E) .990" (Disregarding Shank Diameter, same as #3 selection for Carbon Fiber Contoured Blank)

#2. Medium-Light - A) 1.062", B) 2.75", C) 1.070", D) 3.75", E) 1.070" (Disregarding Shank Diameter, same as #1 selection for Carbon Fiber Contoured Blank)



--If selecting 11° Crown on any Carbon Fiber barrel, please note that our Carbon Fiber Barrels cannot be threaded after-the-fact due to the construction design of the retaining cap.

For over 50 years the Remington 700 has been the go to gun for hunters and servicemen alike because of its’ known out-of-the-box accuracy. Now coupled with the Savage Barrel nut design we get the Rem/Age pre fit barrel.  By elongating the threads and adding a barrel nut, you are able to change out your Remington 700 barrel with a matching chamber Go gauge, barrel nut wrench and a barrel vise.

To be used with recoil lugs .300 or thinner.

***THESE REM/AGES PREFIT BARRELS REQUIRE A BARREL NUT AND ARE ONLY COMPATIBLE WITH STANDARD FACTORY REMINGTON 700 ACTION THREADS (1-1/16"x16TPI) AND STANDARD FACTORY REMINGTON 700 BOLT-FACE GEOMETRY (.700" Breech Counter-Bore) & LUG GEOMETRY OR (if selected as .715") THOSE WITH UPGRADED M16-STYLE EXTRACTORS: ANY DIMENSIONAL DEVIATIONS FROM ANY/ALL OF THOSE AFOREMENTIONED DESIGN ELEMENTS ON YOUR ACTION AND/OR BOLT-FACE WILL PREVENT PROPER FITMENT AND/OR HEADSPACING OF THIS PREFIT BARREL***


***WILL NOT WORK WITH CURTIS ACTIONS***

1-1/16"x16TPI Rem/Ages Barrel nut required, not included.

Need a Rem/Ages barrel nut?  Head here!

Need a Muzzle Thread Protector?  Head here!

X-Caliber Barrel & MFG will not be held accountable for any damage to the carbon fiber by gunsmith or end user due to improper finishing or installation methods.



No Shipping outside the US

*Please refer to the footer of this page for up-to-date production lead-time estimates.

Fluting: Adds 1 week to order lead time



Our Prefit 1MOA accuracy guarantee is 3 rounds at 100 yards with quality ammo and a skilled shooter. Like anything X-Caliber makes, we stand behind it 100%. If you do not think your barrel can shoot 1MOA groups or less, we will have you ship it back. We will inspect the barrel. If the barrel fails, we will build you another barrel and ship it to you at no cost. If the barrel passes all test, it will be shipped back to you at your expense.

For more information about our 1MOA accuracy guarantee and the conditions that apply, please refer to our FAQ or Conditions Pages.





***************************



X-Caliber Barrel Break-In

Procedure Guide



When breaking in your new X-Caliber Barrel, you should perform appropriate fire and clean cycles to normalize the bore surface. Each fire and clean cycle consists of a certain number of rounds fired (one to five) followed by a cleaning procedure (see below for reference), to be completed a certain number of times (1-25). These vary depending on the type of steel of the barrel, bore/groove diameter, velocity and pressure of any given round, etc. This is to be used as a guide. Since our barrels are hand-lapped, each barrel may break in a little differently. Some barrels may require more or less shots or cycles to break in than what is listed here.



416R Stainless Steel: Fire One Round then Clean: Do this 5-10 times. Fire Three Times then Clean: Do this 1 time. Fire Five Times then Clean: Do this 1 time.

4140 Chrome Moly: Fire Once Round then Clean: Do this 5-25 times. Fire Three Times then Clean: Do this 2 times. Fire Five Times then Clean: Do this 1 time.



 Example: For a 416R Stainless Steel barrel, you would fire one round, then perform the cleaning steps outlined below a total of five to ten times (shoot 1 round & clean, done 5-10 times) before starting the three shot cycle where you would fire three rounds and then clean as outlined below, then proceed to fire five rounds then clean, completing the break-in procedure.



Each Firing Cycle (1 shot, 3 shot or 5 shot) should be followed by cleaning the bore (see steps below for reference):



1.)    Using a one-piece, coated cleaning rod with a properly sized bore brush (wet with your favorite non-foaming bore solvent), carefully clean the bore from the chamber end toward the muzzle (3-5 passes is usually sufficient). If you cannot clean from the chamber end, be sure to use a bore-guide so as not to damage the crown or muzzle end of the rifling. Let sit 30-60 seconds before moving on to the next step.

2.)    Push a dry patch down the bore. (2-3 times)

3.)    Put a few of drops of oil on a patch and push that down the bore so as to leave a thin film of oil inside the bore.

4.)    Begin a new cycle: Fire your next round or rounds in your next firing cycle and repeat cleaning as necessary.



It is recommended to keep a written tally of your current step within the process so if you get distracted you will know where you left off.

"Rem/Ages" Carbon Fiber Remington 700 Prefit Barrels

One of Two Contours (.990" Outside Diameter or 1.070" outside diameter). -- ~2lbs 2oz @ 22"

Available in all of our calibers up to and including .375 for the .990" (Small/Medium Caliber) Contour.

Muzzle Threads Available in 1/2"x28, 5/8"x24 and 11/16"x24 for the .990" Contour.  Muzzle Brake Not Included.

All Calibers and Muzzle Threads available in the 1.070" (Large Caliber) Contour.



CARBON FIBER BOLT-ACTION PREFIT CONTOURS

#1. Ultralight/Lightweight - A) 1.062", B) 2.75", C) .990", D) 3.75", E) .990" (Disregarding Shank Diameter, same as #3 selection for Carbon Fiber Contoured Blank)

#2. Medium-Light - A) 1.062", B) 2.75", C) 1.070", D) 3.75", E) 1.070" (Disregarding Shank Diameter, same as #1 selection for Carbon Fiber Contoured Blank)



--If selecting 11° Crown on any Carbon Fiber barrel, please note that our Carbon Fiber Barrels cannot be threaded after-the-fact due to the construction design of the retaining cap.

For over 50 years the Remington 700 has been the go to gun for hunters and servicemen alike because of its’ known out-of-the-box accuracy. Now coupled with the Savage Barrel nut design we get the Rem/Age pre fit barrel.  By elongating the threads and adding a barrel nut, you are able to change out your Remington 700 barrel with a matching chamber Go gauge, barrel nut wrench and a barrel vise.

To be used with recoil lugs .300 or thinner.

***THESE REM/AGES PREFIT BARRELS REQUIRE A BARREL NUT AND ARE ONLY COMPATIBLE WITH STANDARD FACTORY REMINGTON 700 ACTION THREADS (1-1/16"x16TPI) AND STANDARD FACTORY REMINGTON 700 BOLT-FACE GEOMETRY (.700" Breech Counter-Bore) & LUG GEOMETRY OR (if selected as .715") THOSE WITH UPGRADED M16-STYLE EXTRACTORS: ANY DIMENSIONAL DEVIATIONS FROM ANY/ALL OF THOSE AFOREMENTIONED DESIGN ELEMENTS ON YOUR ACTION AND/OR BOLT-FACE WILL PREVENT PROPER FITMENT AND/OR HEADSPACING OF THIS PREFIT BARREL***


***WILL NOT WORK WITH CURTIS ACTIONS***

1-1/16"x16TPI Rem/Ages Barrel nut required, not included.

Need a Rem/Ages barrel nut?  Head here!

Need a Muzzle Thread Protector?  Head here!

X-Caliber Barrel & MFG will not be held accountable for any damage to the carbon fiber by gunsmith or end user due to improper finishing or installation methods.



No Shipping outside the US

*Please refer to the footer of this page for up-to-date production lead-time estimates.

Fluting: Adds 1 week to order lead time



Our Prefit 1MOA accuracy guarantee is 3 rounds at 100 yards with quality ammo and a skilled shooter. Like anything X-Caliber makes, we stand behind it 100%. If you do not think your barrel can shoot 1MOA groups or less, we will have you ship it back. We will inspect the barrel. If the barrel fails, we will build you another barrel and ship it to you at no cost. If the barrel passes all test, it will be shipped back to you at your expense.

For more information about our 1MOA accuracy guarantee and the conditions that apply, please refer to our FAQ or Conditions Pages.





***************************



X-Caliber Barrel Break-In

Procedure Guide



When breaking in your new X-Caliber Barrel, you should perform appropriate fire and clean cycles to normalize the bore surface. Each fire and clean cycle consists of a certain number of rounds fired (one to five) followed by a cleaning procedure (see below for reference), to be completed a certain number of times (1-25). These vary depending on the type of steel of the barrel, bore/groove diameter, velocity and pressure of any given round, etc. This is to be used as a guide. Since our barrels are hand-lapped, each barrel may break in a little differently. Some barrels may require more or less shots or cycles to break in than what is listed here.



416R Stainless Steel: Fire One Round then Clean: Do this 5-10 times. Fire Three Times then Clean: Do this 1 time. Fire Five Times then Clean: Do this 1 time.

4140 Chrome Moly: Fire Once Round then Clean: Do this 5-25 times. Fire Three Times then Clean: Do this 2 times. Fire Five Times then Clean: Do this 1 time.



 Example: For a 416R Stainless Steel barrel, you would fire one round, then perform the cleaning steps outlined below a total of five to ten times (shoot 1 round & clean, done 5-10 times) before starting the three shot cycle where you would fire three rounds and then clean as outlined below, then proceed to fire five rounds then clean, completing the break-in procedure.



Each Firing Cycle (1 shot, 3 shot or 5 shot) should be followed by cleaning the bore (see steps below for reference):



1.)    Using a one-piece, coated cleaning rod with a properly sized bore brush (wet with your favorite non-foaming bore solvent), carefully clean the bore from the chamber end toward the muzzle (3-5 passes is usually sufficient). If you cannot clean from the chamber end, be sure to use a bore-guide so as not to damage the crown or muzzle end of the rifling. Let sit 30-60 seconds before moving on to the next step.

2.)    Push a dry patch down the bore. (2-3 times)

3.)    Put a few of drops of oil on a patch and push that down the bore so as to leave a thin film of oil inside the bore.

4.)    Begin a new cycle: Fire your next round or rounds in your next firing cycle and repeat cleaning as necessary.



It is recommended to keep a written tally of your current step within the process so if you get distracted you will know where you left off.
